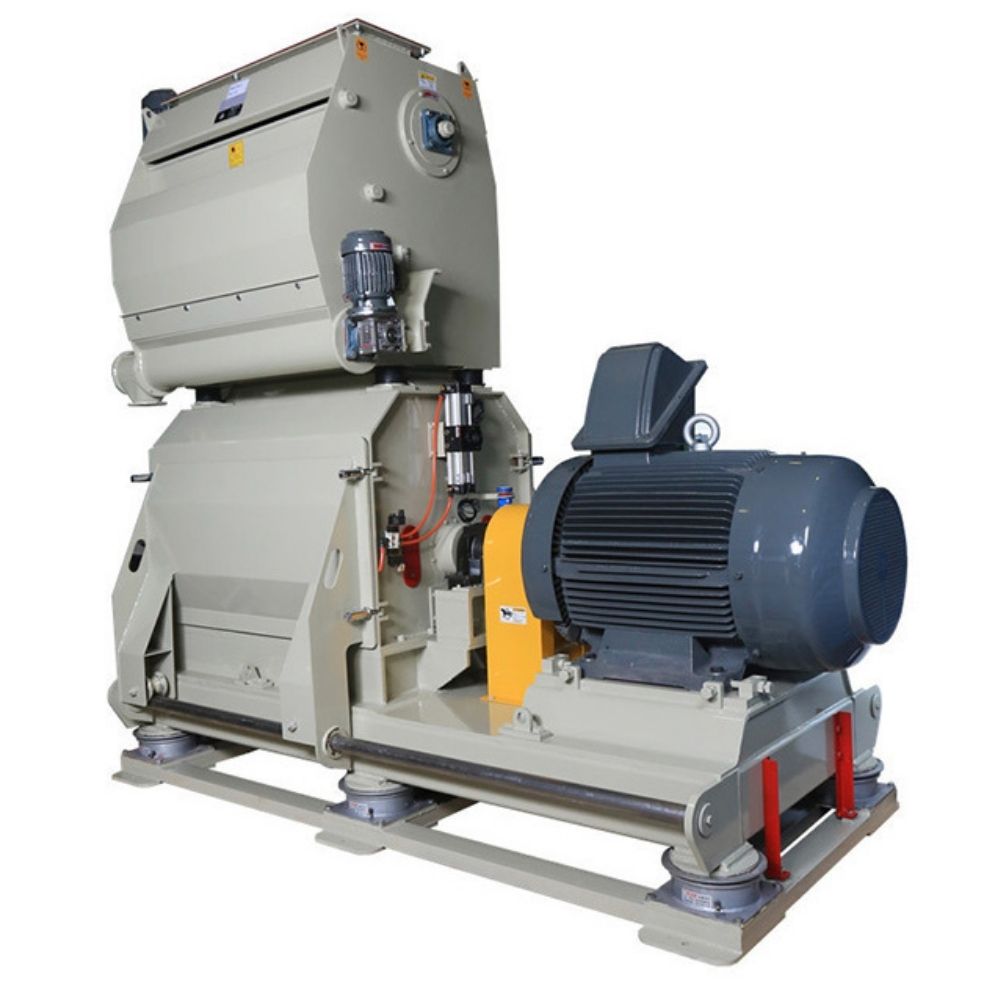

The CPM Hammermill and Fine Grinder series (HMA, HMB, XHM) are designed to meet diverse grinding needs in the feed, food, oilseed, and wood pelleting industries. Whether you're preparing raw materials for pelleting or producing ultra-fine grinds for specialty formulations, this system provides two high-performance modes:

• Coarse grinding using HMA or XHM series with screen sizes >2.0 mm
• Fine grinding using the HMB series with screen sizes as small as 0.5 mm

Each unit is designed with robust, wear-resistant features and an emphasis on uptime and operator convenience. With fast screen changes, two-way rotational direction, and a high-speed motor, CPM's hammermill line enables superior control over grind size and throughput while reducing vibration and noise.

Material is introduced via a screw feeder or gravity proportion feeder into the grinding chamber. High-speed hammers rotating at up to 3600 RPM impact the material against a counter hammer and breaker plate, fracturing it into smaller particles. The crushed material passes through interchangeable screens with variable surface areas (from 0.45 to 2.2 m²), allowing adjustment of final particle size. The two-way rotation and pneumatic screen change system enable fast maintenance, while an aspiration system ensures continuous airflow and product discharge.

• Two operational modes: Coarse (HMA/XHM) and Fine (HMB) grinding
• Screen change in seconds via pneumatic cylinder system
• Two-way rotational hammer direction extends wear life
• Rotation speed up to 1800 or 3600 RPM for variable applications
• Large screen surface area (0.45 to 2.2 m²) for consistent grind size
• Double hammer pin design allows quick and easy hammer replacement
• Counter hammer and breaker plate for enhanced grinding efficiency
• Anti-vibration base for smoother, quieter operation
• Integrated temperature gauges on bearings and chamber

• Animal feed
• Pet food
• Aquafeed
• Wood pellets
• Soybeans, wheat, corn, fishmeal
• Biomass and specialty raw materials
