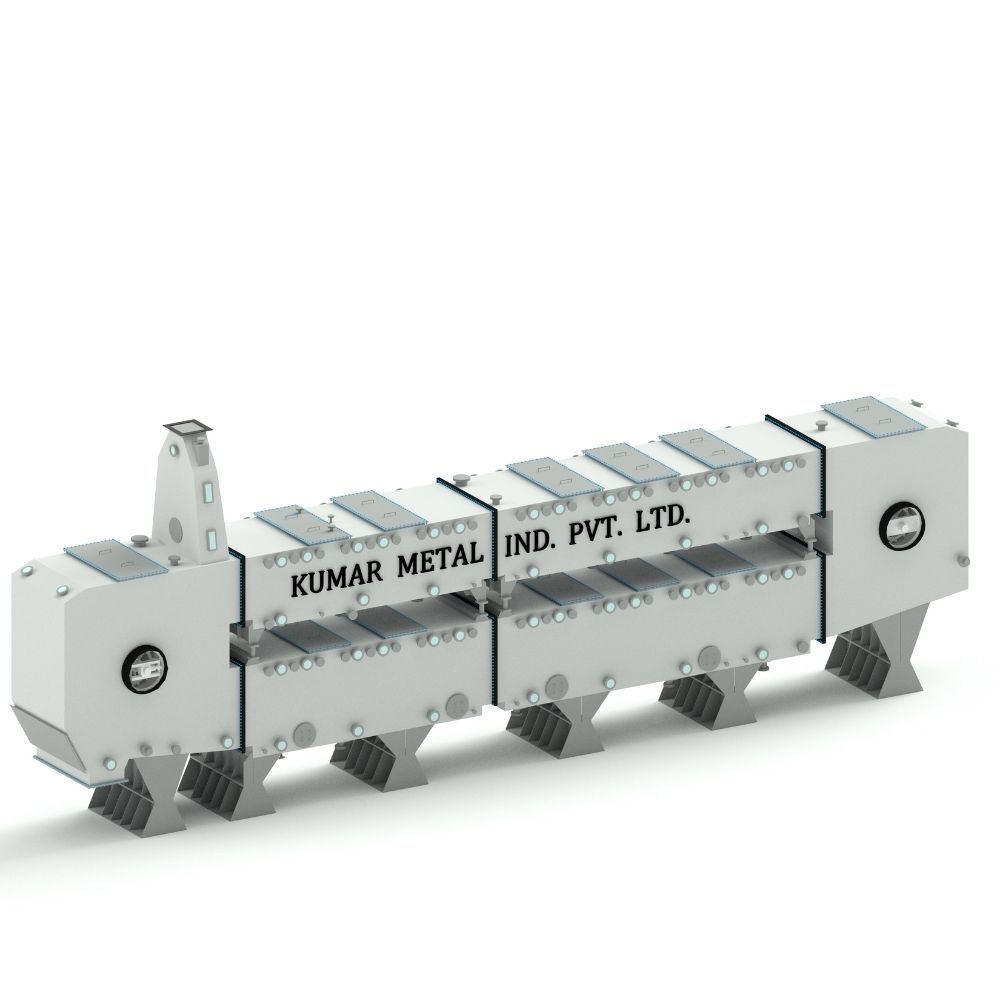

Kumar’s DBEx (Double Bed Extractor) is purpose-built for continuous solvent extraction with a focus on uniform oil percolation, minimal mechanical damage to material, and high tolerance for feedstock inconsistencies. The double-bed configuration allows for staged washing and extraction with superior control over flow rates, solvent exposure, and drainage.

Its low-speed operation and fixed, self-cleaning screens ensure a stable bed without channeling, resulting in consistent miscella quality and lower residual oil. The DBEx is particularly well-suited to processors seeking operational efficiency, reduced desolventiser toaster (DT) load, and long-term reliability in high-throughput environments.

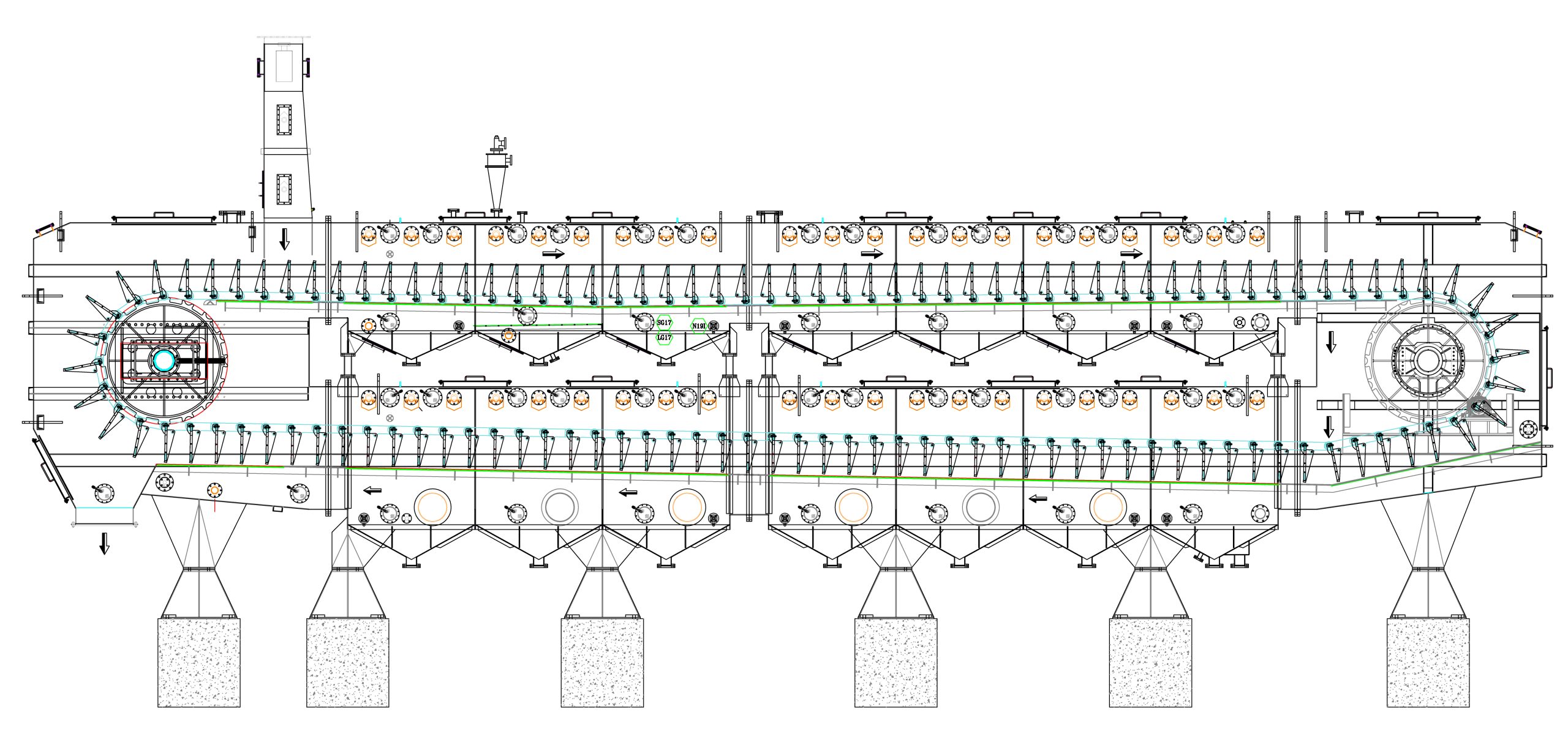

Material is introduced into the extractor through the top-mounted inlet hopper. An internal chain conveyor moves the feed slowly across the first bed, where it is supported on a series of linear V-bar screens. Solvent is sprayed through staged circulation pumps, washing the material and extracting oil efficiently without disturbing the bed.

At the discharge end of the top bed, material flows gently onto the second bed for continued washing and drainage. The double-bed layout ensures deeper miscella penetration and uniform flow. The final stage includes flashing and separation, with spent material exiting at a low solvent retention—reducing DT energy costs. The extractor’s self-cleaning screens prevent clogging, ensuring consistent operation with minimal maintenance.

• Double bed design enables staged washing for superior oil recovery
• Low-speed operation reduces wear and mechanical stress
• Fixed, self-cleaning V-bar screens maintain bed integrity and reduce downtime
• Gentle material handling reduces flake breakage and preserves structure
• High tolerance for poor preparation or low percolation feedstocks
• Optimised drainage reduces residual solvent, lowering DT energy demand
• Uniform solvent distribution prevents channeling and improves miscella quality
• Robust chain conveyor system ensures consistent throughput
• Designed for high-capacity, continuous operation
